Concrete Floor Slab Relative Moisture-Humidity Kit 9200

Records timestamped temperature and humidity readings to verify equilibration.

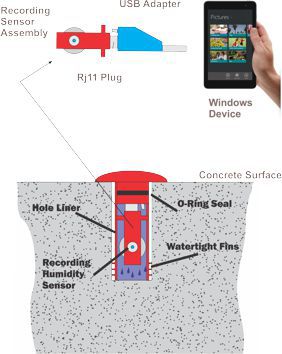

Concrete floor slabs. ASTM F-2170 compliance package. Compact sensor is placed in the slab.

INTERNAL RECORDING, TEST COMPLETE AT 72 HOURS!

Slab Humidity Kit

Qty:

$567.00 ea

Slab Humidity Kit

Part No. 9210 (Appr. Shp Wt 4 lbs).

What’s included with the Complete Kit without Accessories:
* PC USB Adapter
* Data Line with Coupler
* Software
* (3) Temperature-Humidity Sensor Assemblies
* (6) PVC Hole Liners

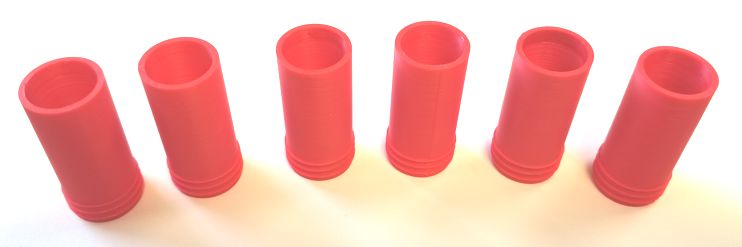

Slab Humidity Hole Liners, Qty 6

Qty:

$32.00 for 6-pack

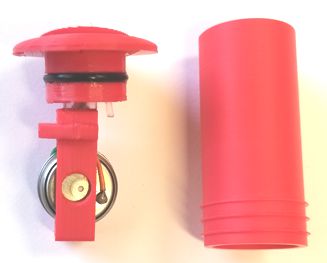

Slab Humidity Sensor Probe Assembly

Qty:

$195.00 ea

Readings may be downloaded while the test is in progress. If equilibrium is achieved, readings may be downloaded and processed while on site with the included software.

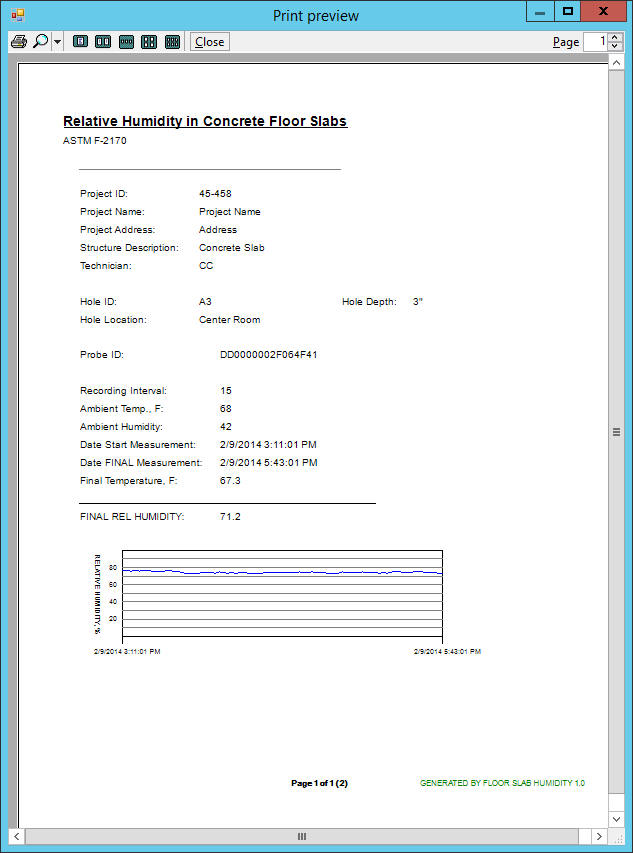

The software includes a reporting function with a graph of all readings. If you have a portable printer, you can even hand the final report to the client before leaving the site!

Results and reports may uploaded to a company server or sent by email.

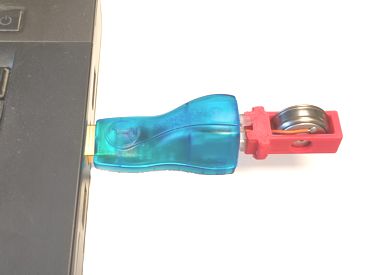

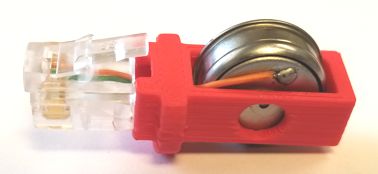

Sensor Communication Plug	USB Adapter

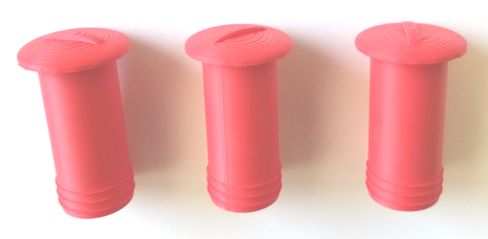

Probes & Liners

1-year warrantee with unlimited tech support

More representative than traditional calcium moisture tests

Continuous recording of temperature and humidity at user selected intervals, saved in Micro Sensor, downloaded after test to a tablet, laptop or PC. No manual readings required. All readings professionally documented

Verify equilabration with data logs. No guessing, no cumbersome or time-consuming manual readings to verify equilibration

Sensors do not have to be removed from services to verify equilibration.

Easy to use software, download readings and print a report with graph in accordance with ASTM F-2170

Re-usable Sensors have a service/battery life of ten years

What’s included with the Complete Kit with Accessories:

* Bosch RH328VC SDS-Plus Cordless Hammer Drill

* Bosch Charger + 2 Batteries

* 3/4" Four-blade Bulldog Xtreme Masonry Drill Bit

* Cordless Hand Held Vacuum with slim Nozzle

* (3) Temperature-Humidity Sensor Assemblies

* (6) Additional Nylon Hole Liners

* Cordless Mini Turbo Vacuum Cleaner

* Slim Vacuum Attachment

* Dell Venue 8 Pro 8" Windows Tablet Computer

* Software

* PC USB Adapter

* Phone Line Extension withPhone Coupler

* Carrying Case

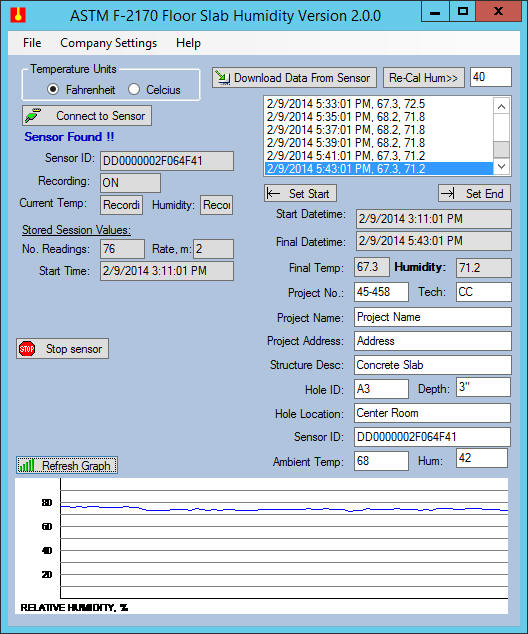

Screenshots

Specifications

Sensor	Maxim DS1923 iButton
	Digital Hygrometer Measures Humidity with 12-Bit (0.04%RH) Resolution
	Operating Range: -20 to +85°C; 0 to 100%RH (see Safe Operating Range)
	Digital Thermometer Measures Temperature with 11-Bit (0.0625°C) Resolution
	Temperature Accuracy Better than ±0.5°C from -10°C to +65°C with Software Correction
	Built-in Humidity Sensor for Simultaneous Temperature and Humidity Logging
	Capacitive Polymer Humidity-Sensing Element
	Hydrophobic Filter Protects Sensor Against Dust, Dirt, Water, and Contaminants
	Individually Calibrated in a NIST-Traceable Chamber
Sensor PC USB Adapter	Maxim DS9490R, internal 64-bit address

All sensors, holders, adapters and other physical hardware, and depictions thereof, on this page, noteably the sensor iButton, snap holder, adapter cord and USB adapter, are registered trademarks of Dallas Semiconductor Corp., Dallas, TX.
