Concrete Curing Tank Temperature Recorder 7300
Records temperatures from one or more curing tanks directly to a PC.

Concrete curing tanks. ASTM C511 compliance package. Waterproof sensor is placed in the tank(s).


Complete Kit - 1 Sensor, Qty:
$865.00



Part No. 7300 (Appr. Shp Wt 5 lbs).
Additional Sensor Assembly, Qty: $100.00


Part No. 7310 (Appr. Shp Wt 2 lbs).
Continuous recording of temperature to PC/Laptop

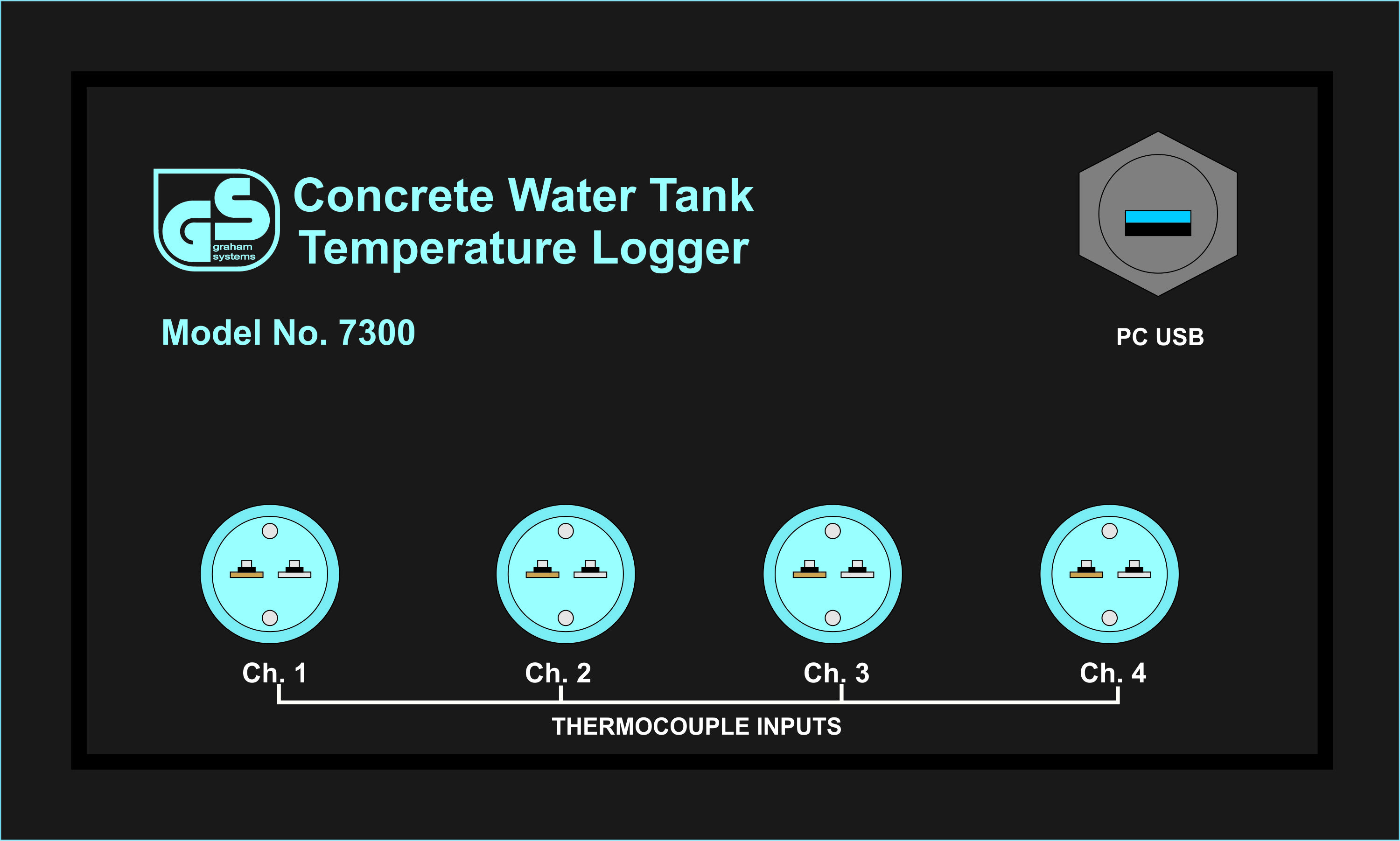

7300 Tank Logger Controller Box

1-year warrantee with unlimited tech support.

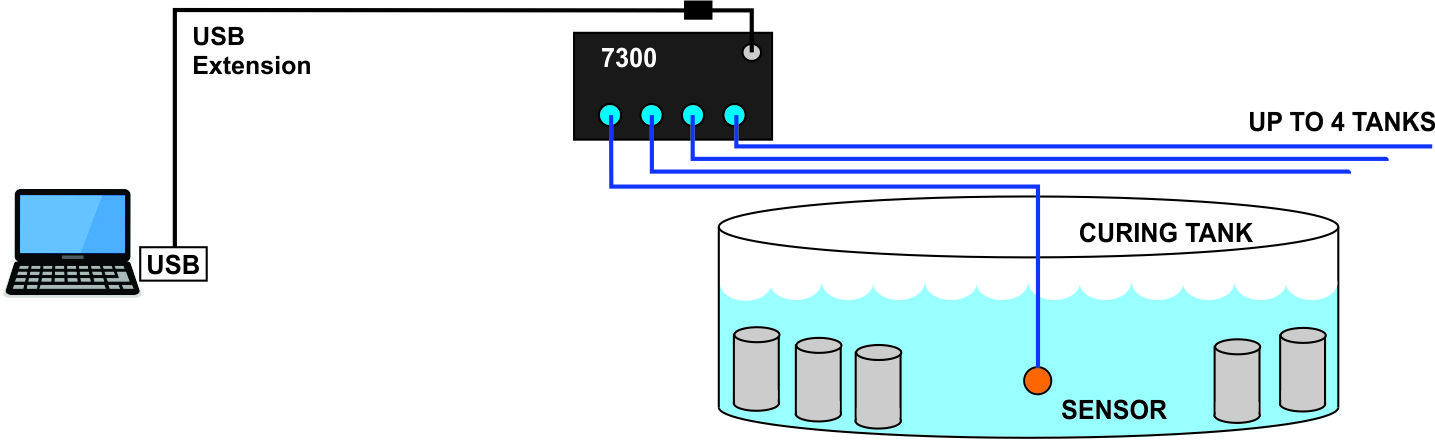

Up to four tanks may be monitored.
One USB cable connects to PC,
Utilizes (1) PC USB port

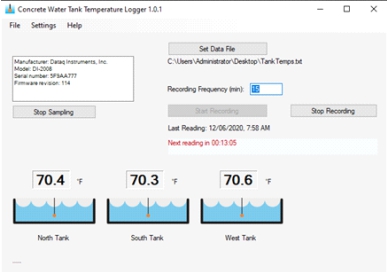

Records temps/timestamp to txt, csv, or xls files
Record at user defined intervals
What’s included with the Tank Logger Standard Kit:

* 7300 Temp Logger Controller Box with (4) four Sensor Jacks
* 30 foot USB Extension Cable
* (4) Type T Thermocouple Sensors with 25’ Cable
* Software
* Instructions
SOFTWARE
SPECIFICATIONS
Controller Box to PC Interface USB 2.0 or 3.0
Temperature Sensor Type T Thermocouple
Temperature Resolution 0.1 degrees
Temperature Accuracy +/- 0.3 degrees
